Product details
| loadable up to 110 kg | max. range of approx. 70 km |
| meets all requirements of the StVO | Maximum speed of 25 km/h |
Product description
With the Fiene 500 folding e-bike, cycling has literally taken on a new meaning.
Flexible and comfortable you can take the bike almost everywhere.
By the quick release mechanism (incl. foldable pedals & handlebar), the folding and magnetic lock
and the transport roller, the bicycle is quickly stowed away in the camper, caravan or passenger car.
For an E-Bike it is comparatively light with 19 kg weight (with battery) and therefore you can easily cross difficult obstacles.
Due to the LCD bicycle computer with 3-stage pedal assistance, the e-bike is very modern, but still uncomplicated in design.
With the 3-stage pedal assistance you can reach up to 25 km/h.
The perfect support is provided by the powerful 36 Volt rear hub motor with 50 Nm, which together with the integrated and powerful lithium-ion battery forms a perfect team.
The motor is durable and maintenance-free and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.
With this bike, long distances are pre-programmed, so to speak, because the bike manages a maximum range of up to 70 km.
Thanks to the Tektro disc brakes, the puncture-proof, comfortable 2,125 tyres and the LED headlights with integrated reflector, driving is clear and safe even at night.
Last but not least, the Fiene 500 meets all requirements of the StVO and can also be loaded up to 110 kg.
Mechanics
Drive
Lighting
Lamps/reflectors: LED headlights with integrated reflector, powered by bicycle battery;
LED- battery rear light on saddle rod; Z- rear reflector; pedals with reflectors; tyres with surrounding reflector strips
Size / Weight
Scope of delivery / accessories
Flexible and comfortable you can take the bike almost everywhere.
By the quick release mechanism (incl. foldable pedals & handlebar), the folding and magnetic lock
and the transport roller, the bicycle is quickly stowed away in the camper, caravan or passenger car.
For an E-Bike it is comparatively light with 19 kg weight (with battery) and therefore you can easily cross difficult obstacles.
Due to the LCD bicycle computer with 3-stage pedal assistance, the e-bike is very modern, but still uncomplicated in design.
With the 3-stage pedal assistance you can reach up to 25 km/h.
The perfect support is provided by the powerful 36 Volt rear hub motor with 50 Nm, which together with the integrated and powerful lithium-ion battery forms a perfect team.
The motor is durable and maintenance-free and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.
With this bike, long distances are pre-programmed, so to speak, because the bike manages a maximum range of up to 70 km.
Thanks to the Tektro disc brakes, the puncture-proof, comfortable 2,125 tyres and the LED headlights with integrated reflector, driving is clear and safe even at night.
Last but not least, the Fiene 500 meets all requirements of the StVO and can also be loaded up to 110 kg.
Mechanics
- Frame (foldable): Magnesium
- Rims: Magnesium, black
- Tyres: 20" x 2.125

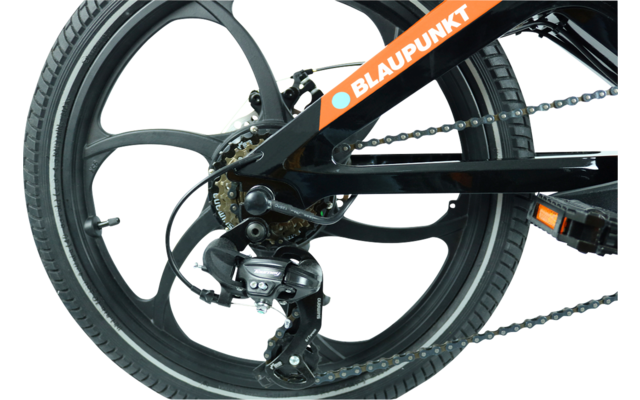

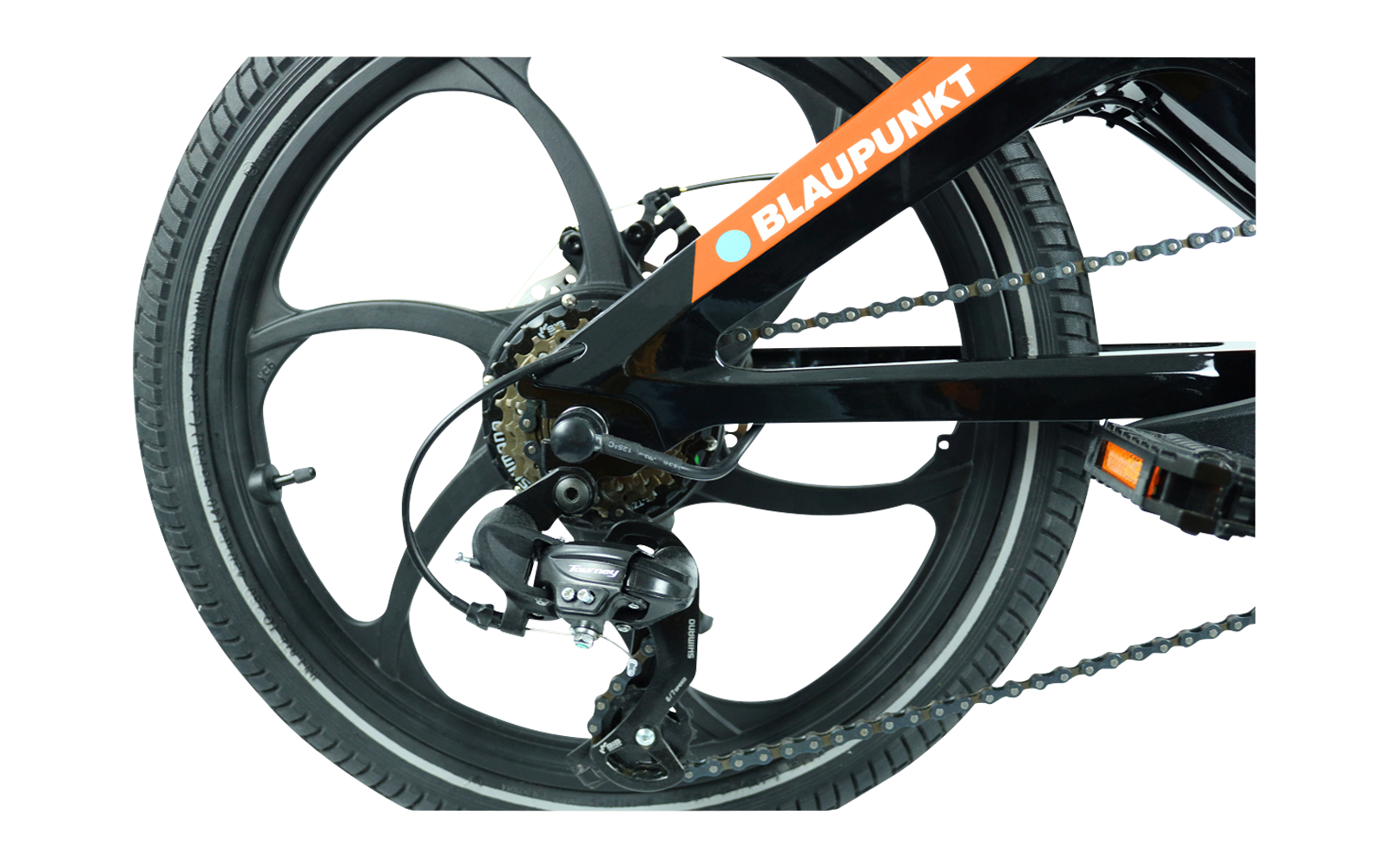

- Gear change: Shimano 6-speed SIS derailleur gears (44T / 14T-28T )
- Brakes (front/rear): Tektro disc brakes, mechanical, 160 mm
- Headset: Semi-integrated
- Maximum payload: 110 kg
Drive
- Motor: Integrated in rear wheel, DC 36 V/ 250 W, 50 Nm, brushless, maintenance-free

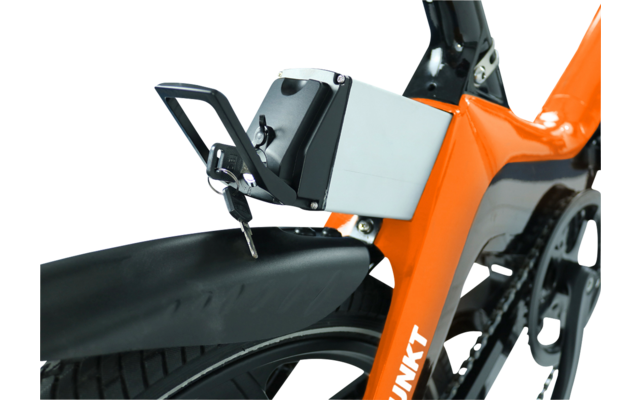

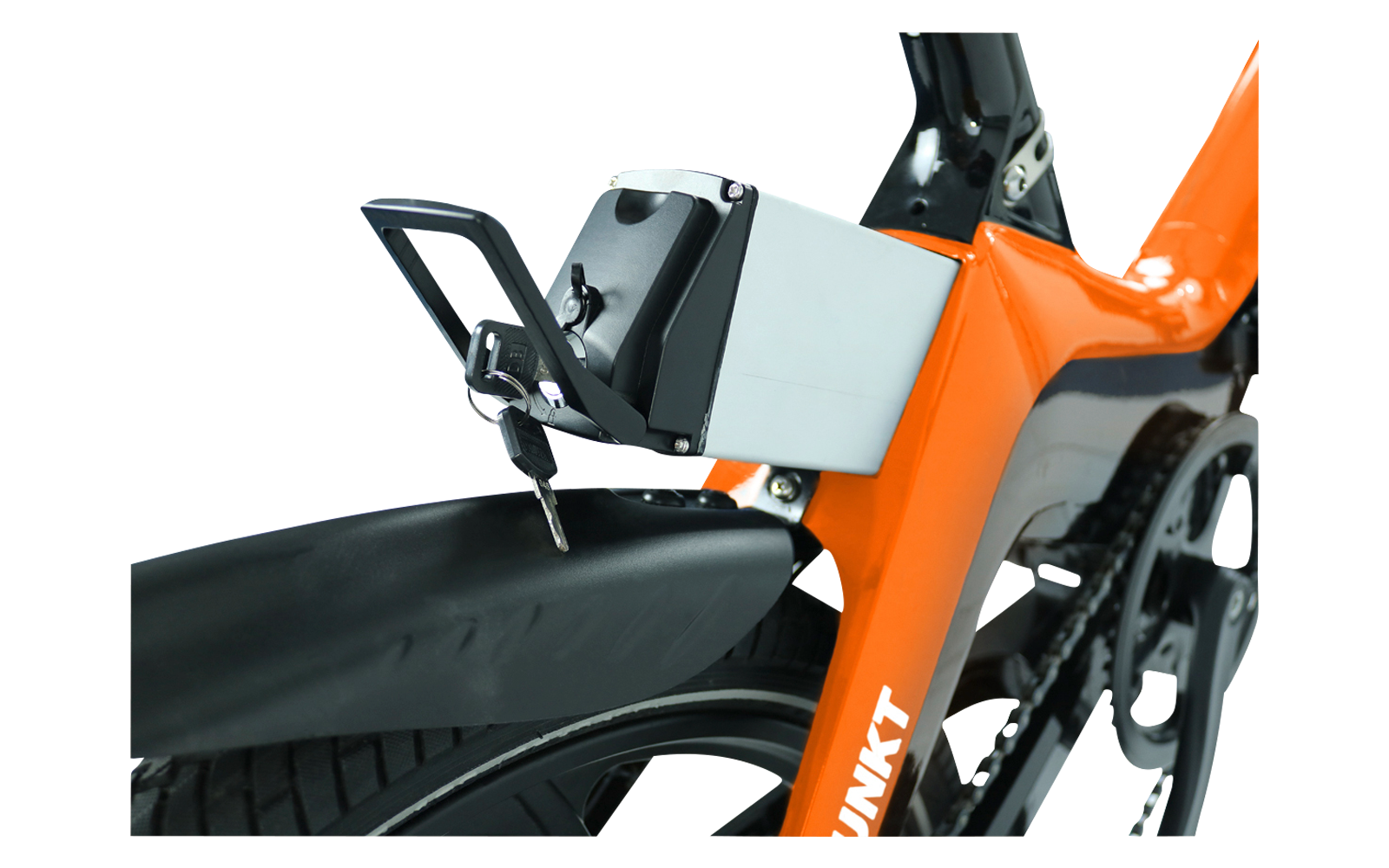

- Battery: 36 V/ 9,6 Ah LG- Lithium- Ion battery with integrated BMS
- Controller: 36 V/ 15 A DC
- Sensors: cadence & speed sensor
- Riding modes: 3 levels of pedal assistance, assistance can be deactivated

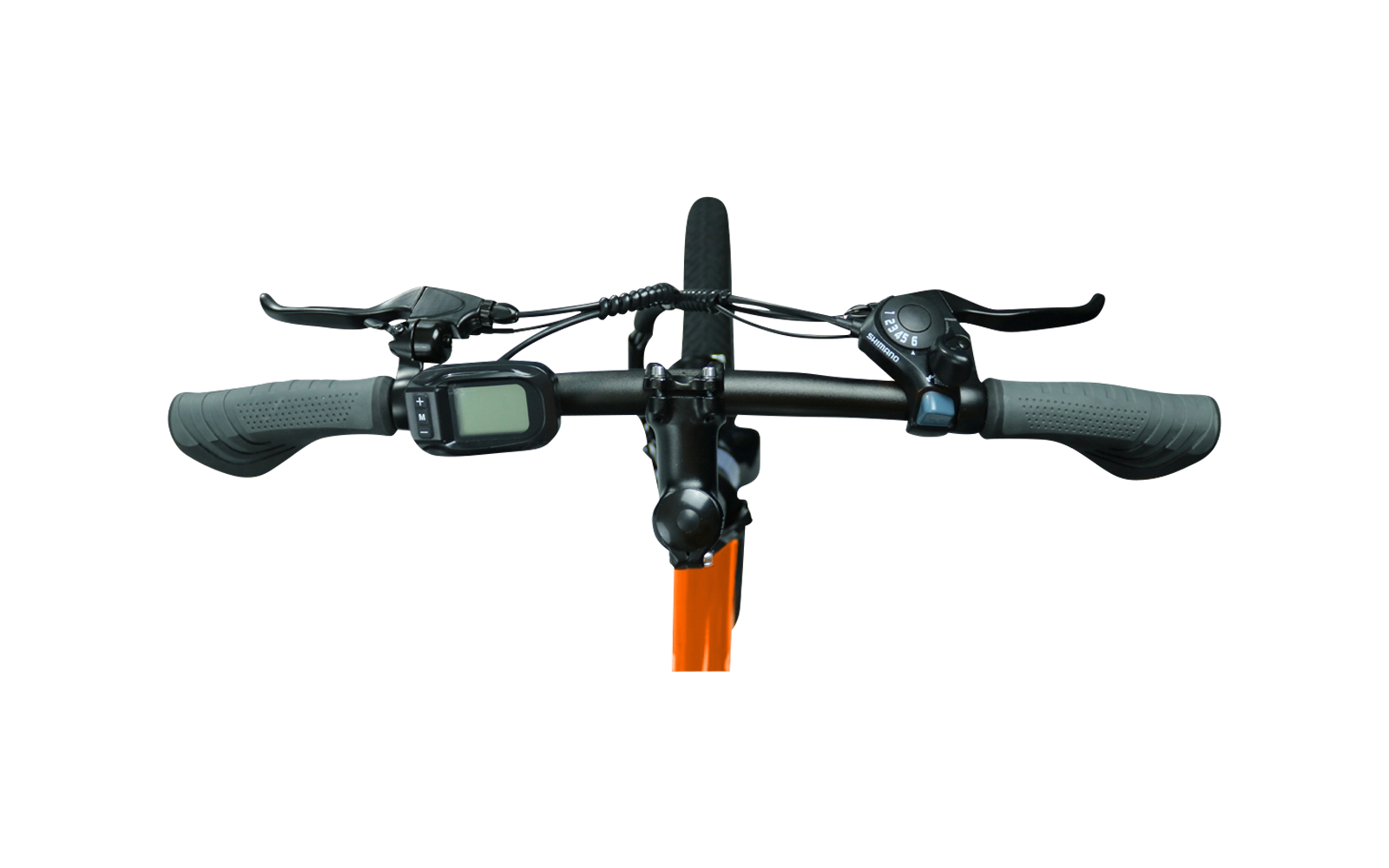

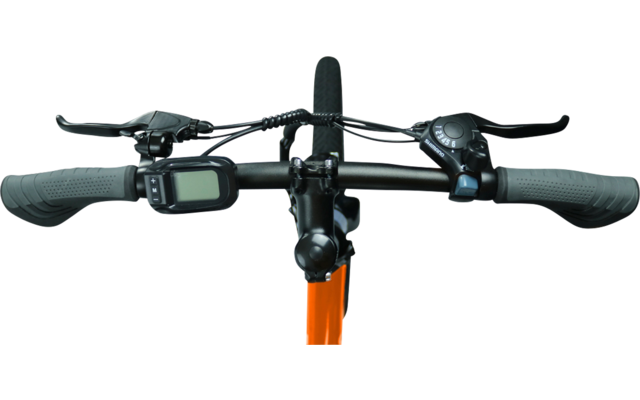

- Bicycle computer: LC display with three function keys, backlight. Functions:
Speed, ODO, TRIP, TIME, PAS LEVEL, battery, light,
automatic switch-off, error display - Charger: Wide range power supply (AC 100 - 240 Volt), 42 V, 2 A
- Charging time: approx. 4- 6 hours
- Range: up to 70 km(1)
- Maximum speed (supported): max. 25 km/h
Lighting
Lamps/reflectors: LED headlights with integrated reflector, powered by bicycle battery;
LED- battery rear light on saddle rod; Z- rear reflector; pedals with reflectors; tyres with surrounding reflector strips
Size / Weight
- Size (ready to drive): approx. 1520 x 570 x 1040 mm (L x W x H)
- Size (folded): approx. 800 x 430 x 600 mm (L x W x H)
- Wheel size: 20" x 2,125
- Handlebar height: 1040 mm
- Handlebar width: 570 mm
- Saddle height: 870- 930 mm
- Seat post tube: Ø 31,6 mm
- Wheelbase: 1010 mm
- Ground clearance: 200 mm (up to transport roller)
- Frame height: 600 mm
- Weight (excl. battery): approx. 19 kg
- Weight battery: approx. 2 kg
- Colour: orange-black
- Mudguards (removable): Yes, included
- Stand: Yes, side stand
- Folding pedals Yes
- Removable battery: Yes
- Battery lockable: Yes
- Battery charging installed/ removed: Yes/ Yes
- Chain guard: Yes, integrated in the chainring
- Luggage carrier: No
- Suspension seat post: No
- Suspension fork: No
- Carrying bag: Optional
- Handlebar bag: Optional
Scope of delivery / accessories
- Pedelec
- Charger with Euro plug
- Battery rear light (USB charging function)
- Mudguards
- Battery with 2 keys
- Operating instructions (DE, EN, IT, PL, CS, DA, EL, FR, NL, SV)
- StVZO compliant, EPAC DIN EN 15194:2017, UN38.3
Features
| Design | Fiene 500 |
| Colour | orange-black |
| Weight | 19 kg |
| Road approval | |
| ean | 4260499853075 |
| Manufacturer Article No. | 2008022000006 |
