Product details
| Automatic safety gas pressure switchover | for the operation of two-bottle systems |
| Gas supply while driving |
Product description

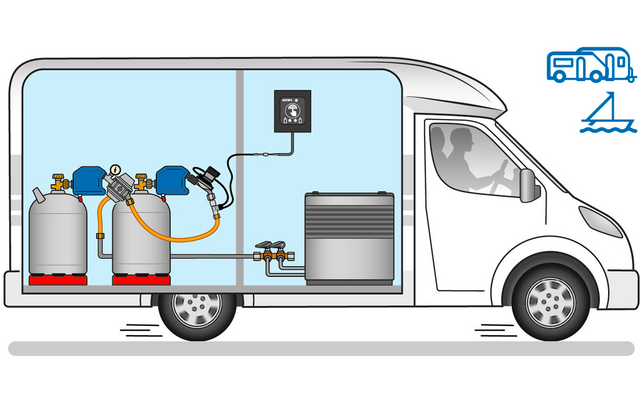

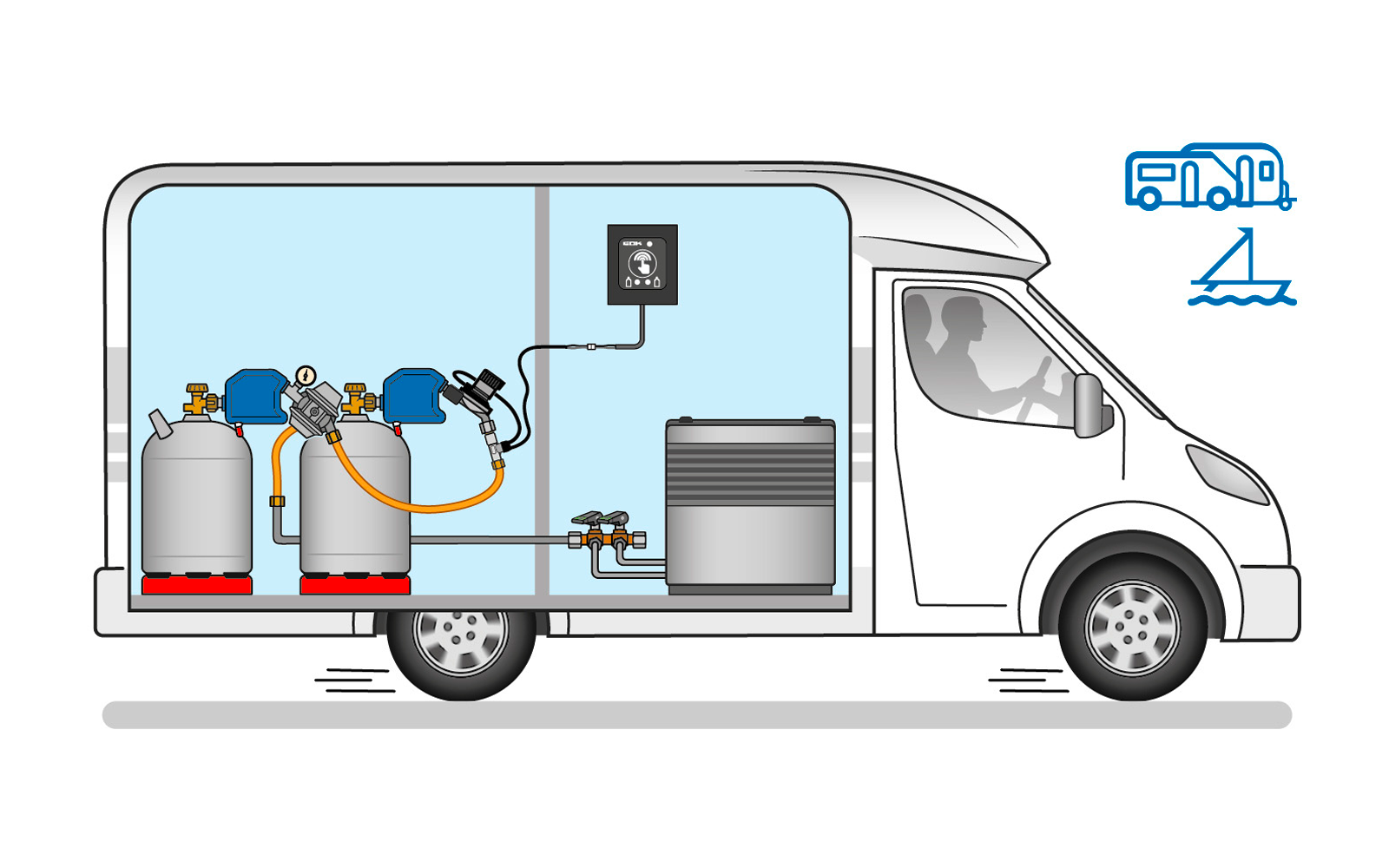

Automatic safety gas pressure switchover for motorhomes
Automatic safety gas pressure switchover system for operating two-cylinder systems in motorhomes and caravans while driving, for direct connection to the gas cylinders, consisting of central and switchover regulator with mechanical crash sensor with new pendulum solution and pressure gauge, hose lines and regulator brackets.
Details:
- Gas supply while driving through integrated mechanical crash sensor with new pendulum solution, which shuts off the gas flow in the event of an accident. The advantages:
- faster and simpler commissioning and reset after response
- more precise operation and therefore fewer malfunctions due to incorrect response behavior
- Easy to start up, even if the leisure vehicle is on an incline
- simple retrofitting as the regulator does not need to be wall-mounted; it is fitted directly to the gas cylinder
- little space required for installation in the gas cylinder box
- Gas cylinder can also remain permanently open while driving
- greater safety, as the gas supply is interrupted directly at the gas cylinder in the event of an accident
- automatic switchover to the gas cylinder on the reserve side as soon as the gas cylinder on the operating side is empty
- cylinders can be changed without interrupting operation
- with PRV safety relief valve
- Gas non-return valve: prevents the gas flow from leaking when changing cylinders
- Medium-pressure hose (rubber with textile insert; cold-resistant down to -30 °C; hose dimensions 6.3 x 3.5 mm) G 3/8 LH-ÜM x G 3/8 LH-ÜM x 450 mm for connecting the two regulators
- Medium-pressure hose (rubber with textile insert; cold-resistant to -30 °C; hose dimensions 6.3 x 3.5 mm) G 1/4 LH-ÜM x RVS 10 x 450 mm for connecting the system to the vehicle's supply line
- suitable for connecting the Caramatic SafeControl remote display
- RVS 10 / 8 outlet connection is equipped as standard with a transition piece for connection to 8 mm pipes
- Brackets for safe storage of the regulator on the wall, e.g. when changing the gas cylinder
Technical data:
- Maximum permissible pressure: PS 16 bar
- Connections: Outlet: Central regulator: G 1/4 LH-KN
- Changeover regulator: G 3/8 LH-KN
- Outlet pressure: Central regulator: 30 or 50 mbar
- Changeover regulator: 150 mbar
Conformity:
- Individual valves with DIN-DVGW or DVGW type examination certificate or EU type examination certificate DGR
dGR type examination certificate
Scope of delivery:
- 1 x gas pressure regulation system consisting of: Central and changeover regulator, each with crash sensor
- 2 x hose lines, 45 cm each
| Connection A | Connection B | Outlet pressure | Output | Country of destination |
|---|---|---|---|---|
| KLF | RVS 10 / 8 | 30 mbar | 1.5 kg/h | DE / AT / PL |
| Brit.POL | RVS 10 / 8 | 30 mbar | 1.5 kg/h | GB Propane |
| EU-Shell | RVS 10 / 8 | 30 mbar | 1.5 kg/h | GB Butane |
| Ital.A | RVS 10 / 8 | 30 mbar | 1.5 kg/h | IT / GR / CY |
| POL-WF | RVS 10 / 8 | 30 mbar | 1.5 kg/h | SE |
| Shell-F | RVS 10 / 8 | 30 mbar | 1.5 kg/h | CH / BE |
| KLF | RVS 10 / 8 | 50 mbar | 1.5 kg/h | DE / AT / PL |
Questions & Answers:
Is retrofitting and installation really that easy?
You simply screw the pressure regulator with integrated crash sensor onto the gas cylinder and connect this unit to the vehicle's pipework via a hose line. That's it! In principle, the same applies to the SafeDrive Plus two-bottle system. All you have to do is screw on two pressure regulators together with the crash sensor and connect them to each other via a gas hose.
Is it possible to switch from any manufacturer to GOK?
There are no restrictions. You can dismantle the old system and retrofit the Caramatic SafeDrive or install a new one. All you need is one or two gas cylinders and access to the vehicle's piping.
Why are gas filters or hose rupture protection not necessary?
With Caramatic SafeDrive, the crash sensor is located directly on the gas cylinder and monitors the entire downstream pipe system. There is therefore no need for an additional hose rupture safety device. And because, as mentioned, the system is located directly on the gas cylinder, there is no need for a gas filter. This system design has been tried and tested at GOK for decades and has shown no anomalies with regard to oily residues or contamination in the fittings.
Where exactly is the crash sensor located?
On the Caramatic SafeDrive, the crash sensor is located in the blue housing directly after the gas cylinder valve and before the pressure regulator.
Can I always leave the gas cylinder open with Caramatic SafeDrive?
In a nutshell: Yes, the gas cylinder may always remain open and gas appliances such as the heater or refrigerator may also be operated while driving.
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | KLF connection |
| Nominal flow | 30 mbar |
| ean | 4045659535974 |
| Manufacturer Article No. | 7184312 |
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | Brit-POL connection |
| Nominal flow | 30 mbar |
| ean | 4045659536001 |
| Manufacturer Article No. | 7184307 |
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | EU shell connection |
| Nominal flow | 30 mbar |
| ean | 4045659536018 |
| Manufacturer Article No. | 7184308 |
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | Ital.A connection |
| Nominal flow | 30 mbar |
| ean | 4045659535981 |
| Manufacturer Article No. | 7184301 |
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | POL-WS Connection |
| Nominal flow | 30 mbar |
| ean | 4045659536025 |
| Manufacturer Article No. | 7184310 |
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | Shell-F connection |
| Nominal flow | 30 mbar |
| ean | 4045659535998 |
| Manufacturer Article No. | 7184302 |
Features
| Type of gas regulator, gas hose | Switchover systems |
| Design | KLF connection |
| Nominal flow | 50 mbar |
| ean | 4045659536032 |
| Manufacturer Article No. | 7184512 |
